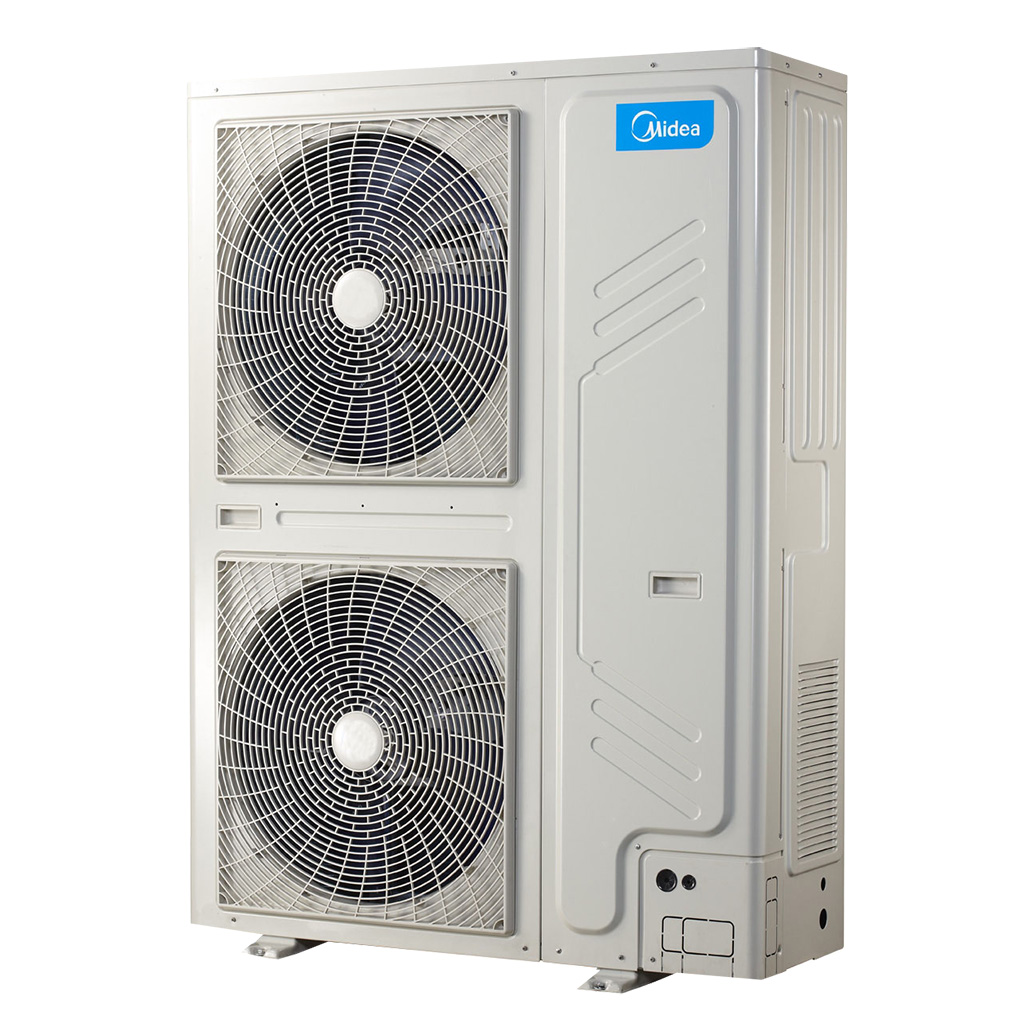

26kW V4+I Series VRF(Side discharged) (50Hz)
Optimized design for middle-sized buildings
MODEL NUMBER: MDV-V260W/DRN1
- Integrated design
- Easy installation
- Less leakage possibility
- Features
- Specifications
- Manuals
Features
Compared with combination units, the individual units don’t need complicated piping and wiring at the jobsite. It eliminates the communication wire, power wire, oil balance pipe, and refrigerant distributors between units.
High Efficiency
High efficiency compressor and fan motor
Wide Operation Range
Wide operation capacity range and temperature range
High Reliability
Different functions ensure high reliability system
Enhanced Comfort
Fast cooling, heating and precise temperature control
Specifications
| General | |
|---|---|
| Type | V4+I Series VRF |
| Specification | |
|---|---|
| Power Supply (Ph-V-Hz) | 380-415/3/50 |
| Cooling Capacity (kW) | 26.0 |
| Heating Capacity (kW) | 28.5 |
| Net dimensions (W×H×D)(mm) | 1120×1558×528 |
| Packed dimensions (W×H×D)(mm) | 1270×1720×565 |
| Net weight(kg) | 147.0 |
| Gross weight(kg) | 163.0 |
| Ambient temp.operation range(Cooling)(℃) | -15~46 |
| Ambient temp.operation range(Heating)(℃) | -15~24 |
