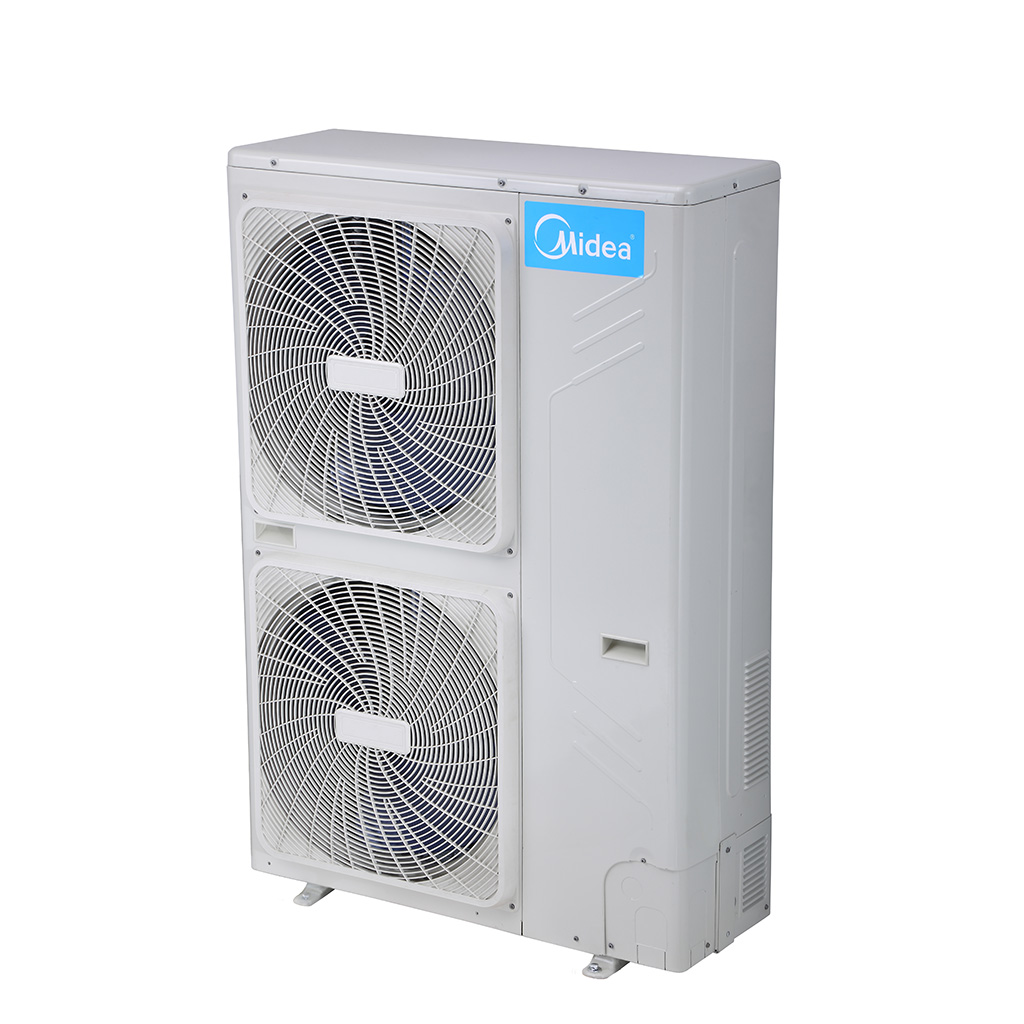

12kW M-Thermal Split(50Hz)
All in one solution for any application
MODEL NUMBER: MHA-V12W/D2N1
- Heating, cooling, floor heating and sanitary hot water
- High efficiency and total heat solution
- No extra refrigerant charging when piping less than 10m
- compact structure design realizing no frozen risk
- Flexible operation and more comfort
- Features
- Specifications
- Manuals
Features

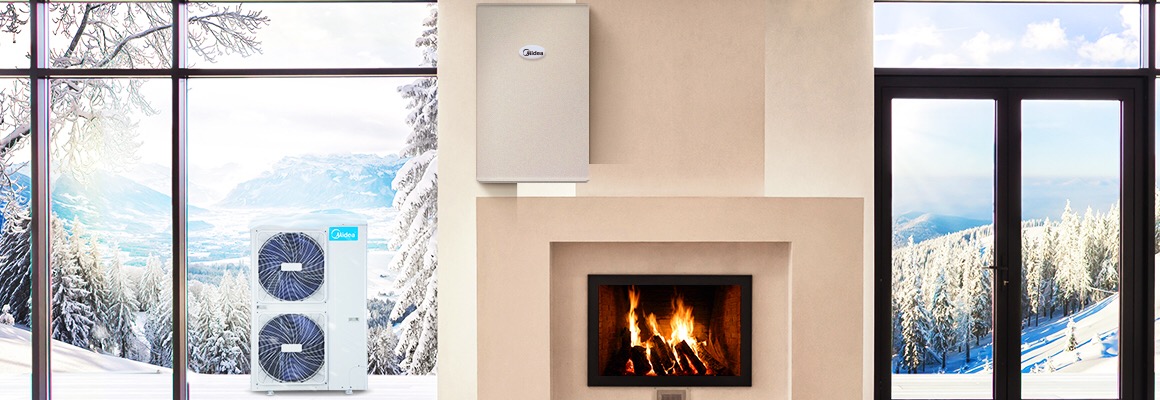

M-Thermal Split type boasts a compact structure design and the water pipe is connected between the hydraulic kit and indoor heating appliances, realizing no frozen risk and saving much insulation work. It not only supplies hot water for fan coil, floor heating system, sanitary water tank, but is also compatible with the solar collector, gas furnace, boiler and other heat sources.
High efficiency and total heat solution
Twin rotary DC inverter compressor to guarantee optimal operational reliability and efficiency. Offers heating capacity of 80% at -7°C thanks to the large heat exchanger and large compressor. Heating, cooling and domestic hot water: a total heat solution. Wide ambient temperature and water outlet temperature operating ranges. Compatible with additional heat sources (AHSs), including solar water heaters and boilers. AHSs can work together with heat pump or alternative for space heating and domestic hot water dependent on the system control.
Flexible installation and easy maintenance
Compact structure, independent hydronic box, flexible installation. Refrigerant pipes run indoors from the outdoor unit, no need extra insulation of water piping to protect from freezing up. Additional refrigerant charge only required if refrigerant piping length exceeds 10m.
Flexible operation and more comfort
Weather dependent operation with climate correlation to ensure absolute comfort. Two zones controlled using M-Thermal interface only. Priority setting function and multi modes choice. Special functions such as air purge, preheating for f loor and f loor drying up.
Specifications
| General | |
|---|---|
| Type | M-Thermal Split |
| Specification | |
|---|---|
| Power Supply (Ph-V-Hz) | 220-240/1/50 |
| Heating Capacity (kW) | 12.10 |
| Cooling Capacity (kW) | 11.00 |
| Net dimensions (W×H×D)(mm) | 900×1327×400 |
| Packed dimensions (W×H×D)(mm) | 1030×1457×435 |
| Net weight(kg) | 99 |
| Gross weight(kg) | 112 |
| Ambient temp.operation range(Cooling)(℃) | -5~46 |
| Ambient temp.operation range(Heating)(℃) | -20~35 |
| Ambient temp.operation range(DHW)(℃) | -20~43 |
